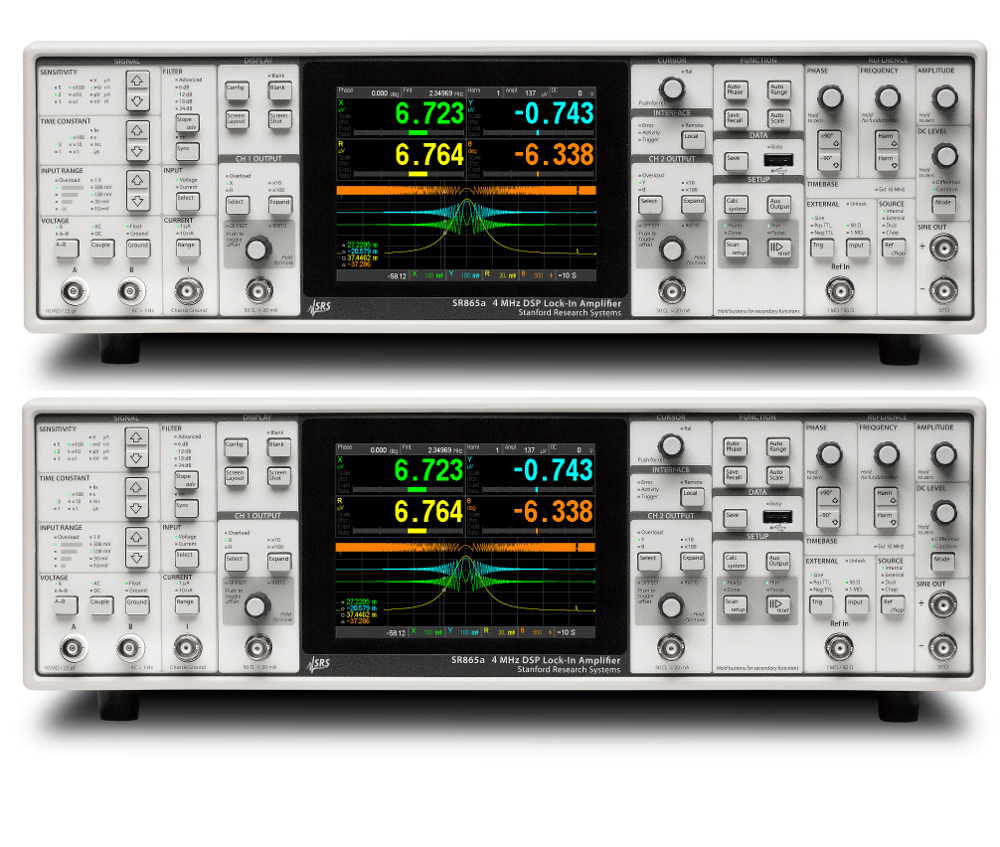

The system was developed in house and is built around a dual lockin setup.

It is capable of measuring:

• Frequency range: 1mHZ - 4 MHz
• Stimuli Voltage range: nVolts - Volts
• Response voltage range: nVolts - Volts
• Current response range: pA - mA

The system can also operate in conjuction with the RF_VNA to cover a range of 9 orders of magnitude in frequency

Measurement can be:

• On wafer (probe station)
• Liquid cell (custom built)
• Temperature cell (under development)

All experiment and data are controlled via dedicated LabView through PC

For further information or to request access / measurements please contact George Deligeorgis
